Auto Socket Plugin

Auto Socket Configuration Plugin Development

Demo Video

In architectural offices, configuring socket endpoints is often tedious and time-consuming. To address this, we developed a Python-based automated socket configuration tool within Revit. Users can select furniture, and the tool automatically generates socket endpoints.

User Interface

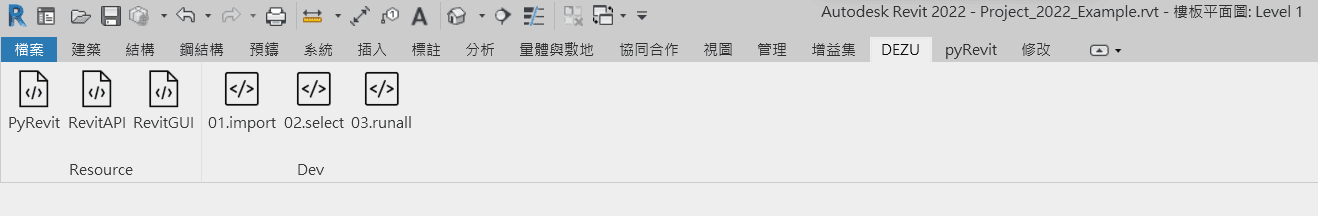

The user interface is directly embedded within Revit. The front section provides development resources, while the rear section contains the action buttons. These features include import, select, and runall.

User Interface

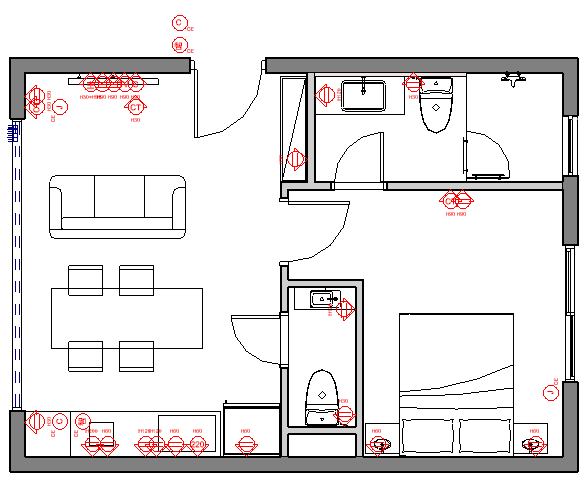

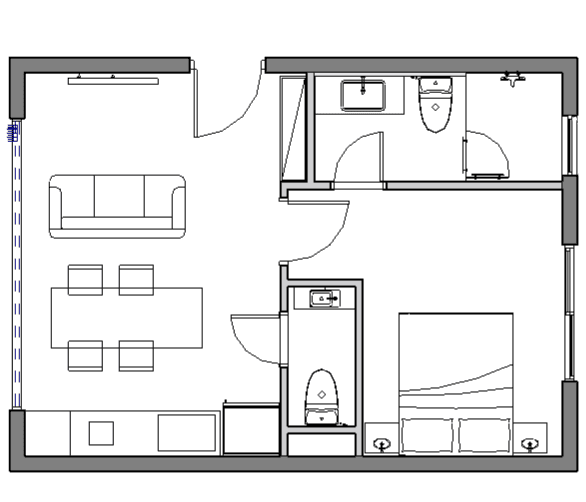

With just a single click, it automatically generates corresponding socket tags onto a clean floor plan.

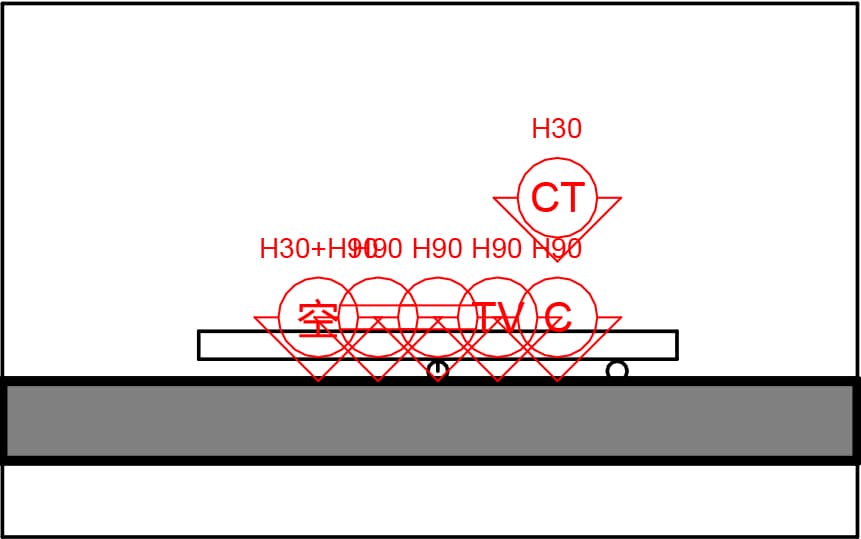

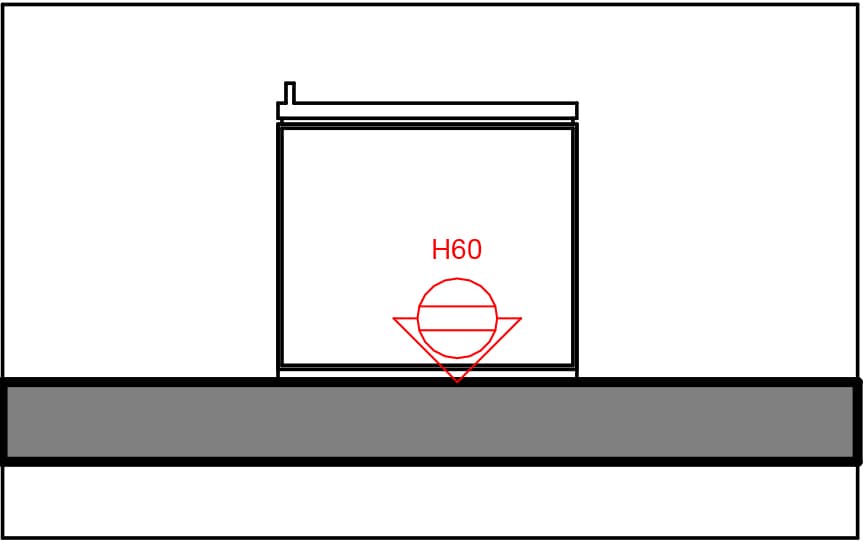

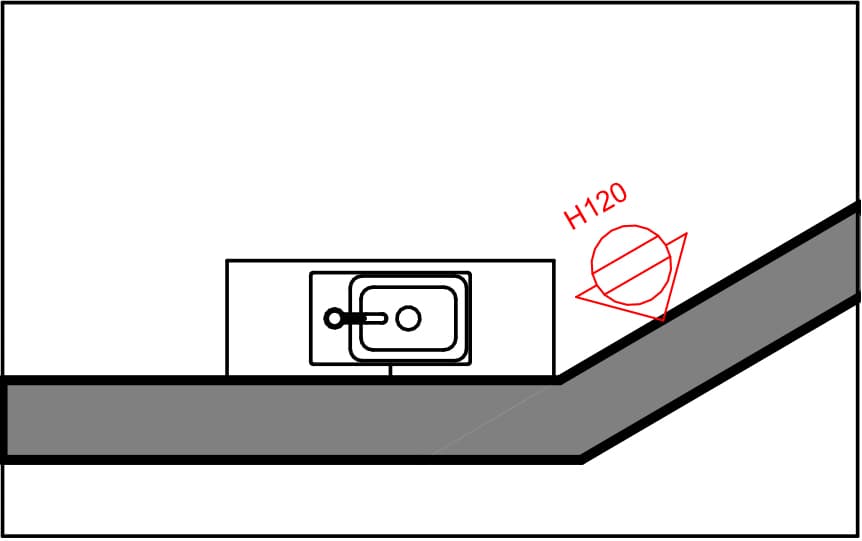

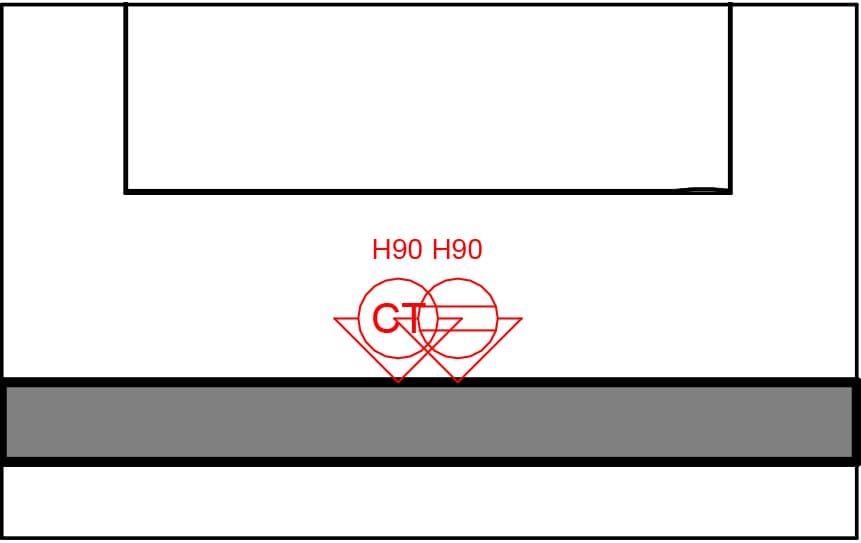

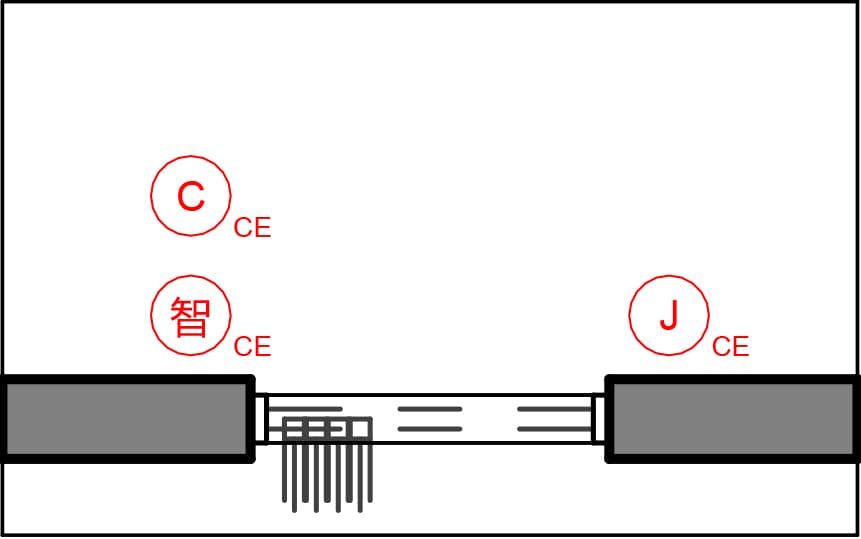

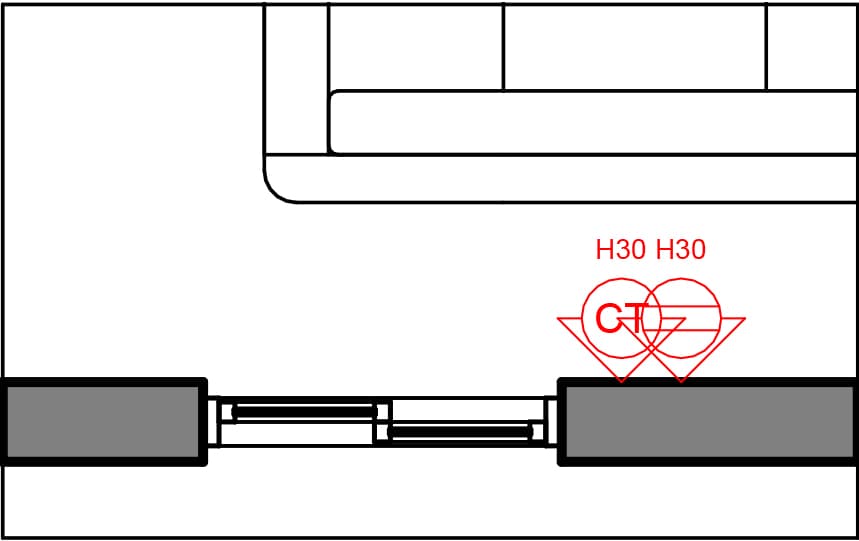

Algorithm

We developed different algorithms tailored to various scenarios. The core workflow begins by detecting the furniture within the floor plan, then scanning for the nearest wall relative to that furniture, and finally placing the receptacles based on geometric properties.
